Precision Wire Twisting: Eliminating Manual Variability
In high-specification sectors such as Aerospace, Motorsport, and Defence, the physical geometry of a twisted pair is as critical as the conductor material itself. Manual twisting methods—often involving hand drills or rudimentary jigs—introduce inconsistent Twists Per Metre (TPM) and uneven tension. These variables lead directly to impedance swings, signal phase errors, and mechanical fatigue, often resulting in intermittent “No Fault Found” (NFF) failures during final loom testing.
The BÖWE BAV 1016 is the industry standard for automated, programmable wire twisting. It is designed to de-risk your production line by replacing operator guesswork with repeatable, digital control. Whether you are processing AS1607 aerospace wire or high-speed automotive data lines, the BAV 1016 ensures strict adherence to AS9100 and IPC-WHMA-A-620 quality standards.
Key Operational Advantages
- Tension-Controlled Twisting: Unlike manual methods that risk “necking” or stretching the copper conductor, the BAV 1016 can maintain constant tension with the optional Overam Feature. This preserves the Dielectric Constant (εr) of the insulation and ensures consistent impedance across the entire cable run.

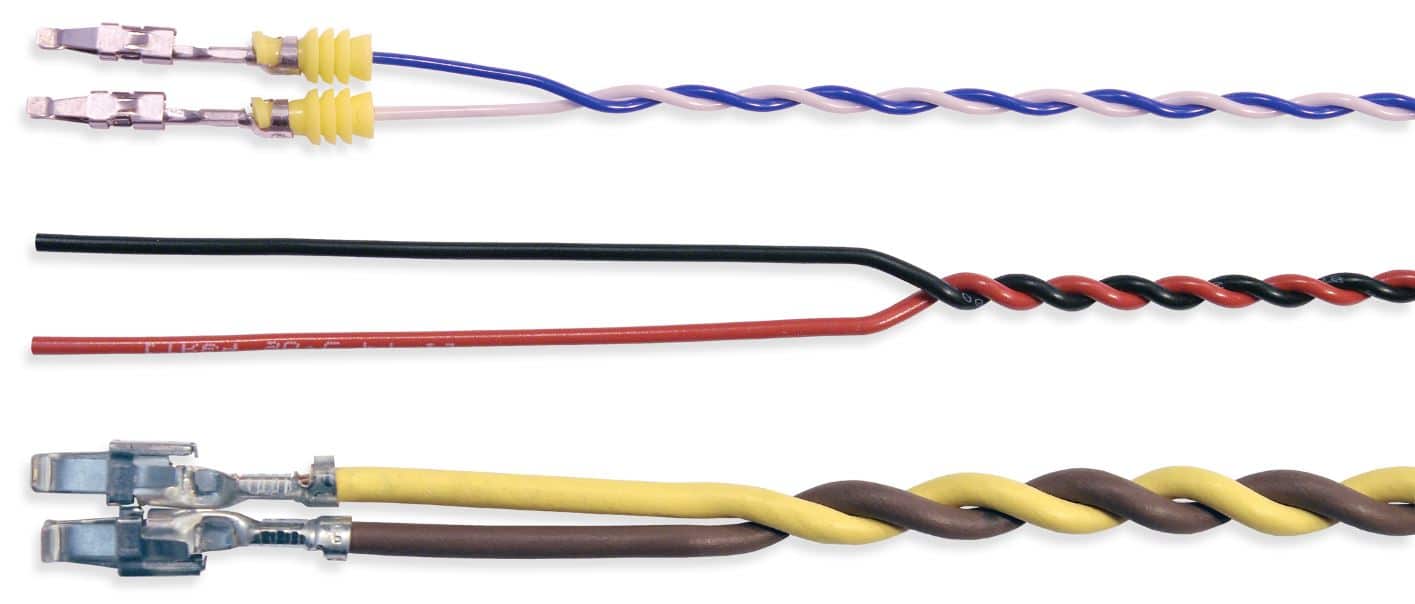

- Multi-Conductor Versatility: Capable of twisting between two and five wires simultaneously. This allows complex sensor looms and multi-signal assemblies to be manufactured with the same level of precision as a simple pair.
- Programmable Repeatability: With storage for up to 999 programmes, setup time is reduced to seconds. This eliminates “first-off” wastage and ensures the 500th assembly is physically identical to the first.
- Damage-Free Handling: Specially engineered wire holders protect pre-terminated contacts and delicate insulation, ensuring the mechanical integrity of the connector remains uncompromised during the twisting cycle.
Precision Wire Twisting & Characteristic Impedance Design Tools
BÖWE Series Twist & Impedance Estimator
Twist Rate Finder (Target Impedance)
The Technical Reality of Signal Integrity
A theoretical calculation only holds true if the physical assembly is repeatable. Cimbian’s automated twisting solutions, such as the BÖWE BAV 1016, are designed to eliminate the variables that manual assembly introduces:
- Programmed Tension: Advanced motor control ensures constant force application, preventing the “necking” or insulation deformation common in manual twisting.
- Synchronised Pitch: The BÖWE Elektrik systems ensure the Twists Per Metre (TPM) remain identical from the first centimetre to the last, critical for maintaining differential impedance.
- Mechanical Verification: By using precision stepper-motor-controlled heads, you ensure the twist angle stays within the “Safe” zone identified by our estimator.
- Final Proof: Our CableEye® systems provide the empirical verification, testing the finished BÖWE-processed assembly to ensure the theoretical design has been met.
Technical specifications provided by our partner, BÖWE Elektrik .
Technical Glossary
The distance between the centres of the two conductors. In a perfectly twisted pair, this equals the Outer Diameter (OD) of one insulated wire.
The diameter of the bare copper/conductor itself (e.g. 24 AWG is approximately 0.51mm).
A measure of the insulation's ability to store electrical energy. Lower values (like PTFE) allow for faster signal speeds and higher characteristic impedance.
The number of full 360° revolutions performed over a one-metre length. Precision TPM control is essential for preventing signal phase errors.
Note:
This tool provides a theoretical estimate based on standard helical geometry. Real-world results may vary based on insulation compression and shielding. For mission-critical applications, Cimbian recommends physical testing using the CableEye® system.
Bridging the Gap: From Theory to Production
A theoretical calculation only holds true if the physical assembly is repeatable. Cimbian’s automated twisting solutions, such as the BÖWE BAV 1016, are designed to eliminate the variables that manual assembly introduces:
- Pre-set Tension: Constant force application prevents insulation deformation.
- Synchronised Pitch: Ensures the Twists Per Metre (TPM) remain identical from the first centimetre to the last.
- Verification: Our CableEye® systems provide the final empirical proof, testing the finished assembly against your target specifications to ensure the theoretical design has been met in reality.
Product Highlights
(30 AWG to 14 AWG)
(Fully Adjustable)
(Clockwise/Anticlockwise)
In addition to the standard fittings, we can also provide custom holders for twisting wires that are attached to assemblies, such as sensors etc.
Ready to Optimise Your Wire Twisting?
Speak with our technical team for a demonstration or custom impedance consultation.
